Model# PLMV169DCD

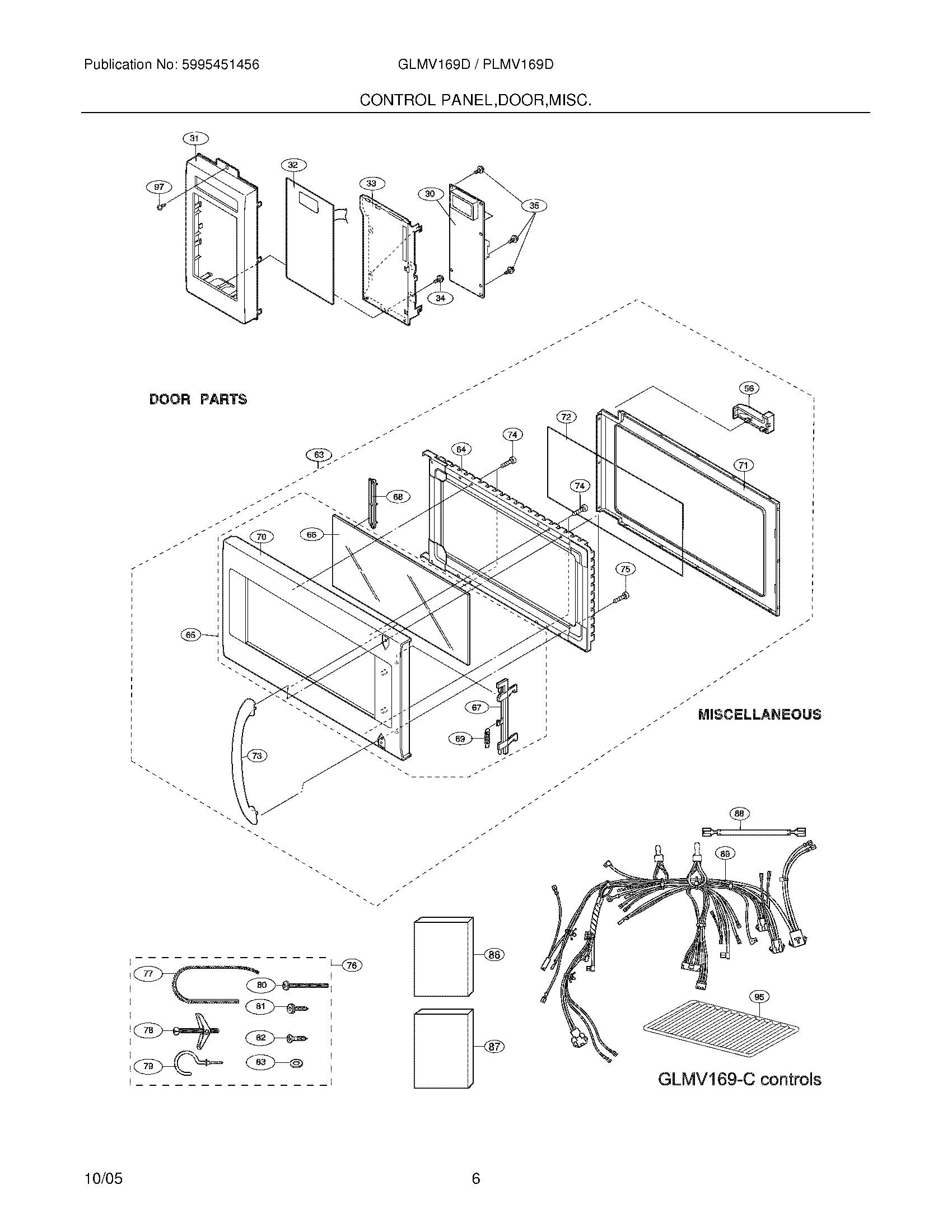

The image and part list below are associated with the component: 05 - CONTROL PANEL DOOR MISC:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
Description | Part# | Substitution# | Diagram Reference | ETA | ||
---|---|---|---|---|---|---|
Control Board,printed circuit | 5304440245 | 5304468192 | 30 | 3 days | ||
Frame,control panel ,stainless steel | 5304448491 | 31 | 3 days | |||
Touch Control,key pad ,black | 5304443989 | 32 | 3 days | |||
Panel,control mount | 5304440281 | 33 | 3 days | |||
Screw,control panel ,3mm x 10mm | 5303319584 | 34 | 3 days | |||
Screw,control board ,3mm x 10mm | 5304440282 | 5304456930 | 35 | 3 days | ||
Door Stop | 5304440300 | 56 | 11 days | |||
Door Assy,complete ,stainless steel ,with handle | 5304448492 | 5304453894 | 63 | 3 days | ||
Panel,inner door ,black | 5304440305 | 64 | 11 days | |||
Panel,glass ,door front | 5304440311 | 66 | 11 days | |||
Latch,door | 5304440314 | 67 | 3 days | |||
Clip,glass retainer ,door | 5304440315 | 68 | 3 days | |||
Spring,door latch | 5304440316 | 69 | 3 days | |||
Frame,choke cover ,inner door | 5304440320 | 5304485842 | 71 | 3 days | ||
Seal,door ,film | 5304440321 | 5304468205 | 72 | - |
|
|
Handle,door ,stainless steel | 5304440322 | 5304461371 | 73 | 3 days | ||
Screw,4mm x 8mm | 5303319634 | 5304451561 | 74 | 3 days | ||
Screw,4mm x 12mm | 5304440326 | 75 | 3 days | |||
Hardware,installation ,kit | 5303319625 | 76 | 3 days | |||
Sleeve,power cord ,grommet | 5303318761 | 5303319605 | 77 | 11 days | ||
Screw,toggle | 5303318762 | 78 | 3 days | |||
Hook,screw-in ,cord holder | 5303322979 | 79 | - |
|
||
Screw,5mm x 60mm | 5303318764 | 5304453895 | 80 | 3 days | ||
Screw,4mm x 12mm | 5303318767 | 5304414648 | 81 | 3 days | ||
Screw,wood ,5mm x 35 mm ,(6) | 5303318765 | 82 | 11 days | |||
Washer,flat ,30mm ,(2) | 5303318766 | 83 | 11 days | |||
Template,installation ,top | 5304451830 | 5304468216 | 86 | 3 days | ||
Template,installation ,wall | 5304451831 | 5304468216 | 87 | 3 days | ||
Wire,high voltage-A | 5304440331 | 88 | 3 days | |||
Wiring Harness,main-A | 5304451832 | 89 | 11 days | |||
Rack,microwave oven ,wire | 5304440338 | 95 | 3 days | |||
Screw,4mm x 12mm | 5304440340 | 5304451553 | 97 | 3 days |
